CKE61100M Flat Bed CNC Lathe
This machine is a CNC horizontal lathe controlled by longitudinal (Z) and transverse (X) axes. It can automatically perform cutting operations on large-sized shaft and disc-type workpieces, including internal and external cylindrical surfaces, conical surfaces, arc surfaces, facing, grooving, and chamfering. It is also capable of turning various types of threads, such as metric straight threads, face threads, imperial straight threads, and tapered threads.
| Max. swing diameter over bed | Φ1000mm |
| Max. cutting length | 1900/2900/3900/4900/5900 |
| Max. workpiece length | 2000/3000/ 4000/5000/6000 |
| Max. turning length | Φ1000mm |
| Spindle motor power | 22/26kw(FANUC) |
| Spindle bore | Φ130mm |
| Chuck size | Φ1000mm |
| Spindle speed ranges | 2~315 |

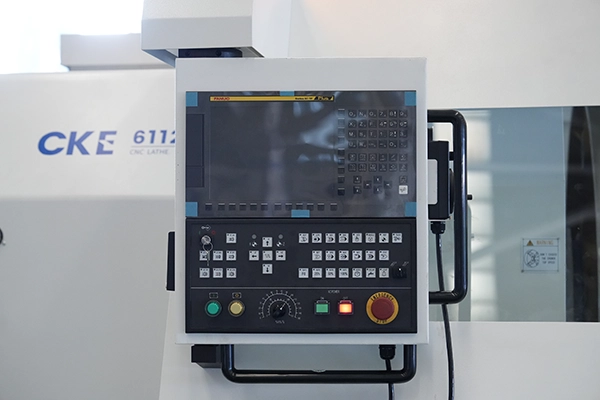

| CNC controller | FANUC,SIEMENS,GSK,HNC |
CKE61100M
The machine adopts a traditional horizontal lathe layout with an integral design that ensures high sealing performance and compliance with safety standards. Key base components including the bed, headstock, carriage, and tailstock are produced using resin sand casting, providing superior overall stability. Critical accuracy-related parts such as the bed, carriage, lead screw, and support units have been structurally optimized with enhanced machining precision.
