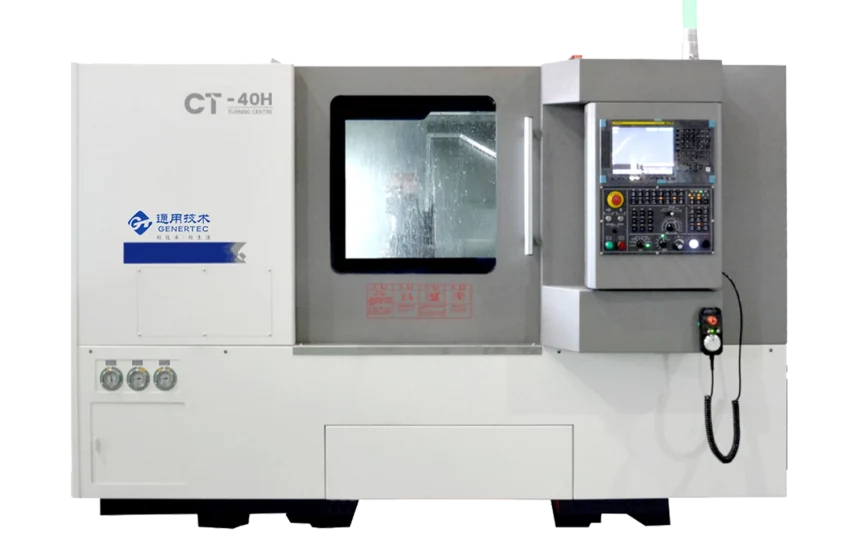

CT40H CNC Turnung Center
The CT-40H is a fully functional CNC turning center manufactured by our company, featuring 3-axis simultaneous control and semi-closed loop system. Constructed with a monoblock cast bed in a 45° inclined guideway layout, the machine delivers enhanced rigidity and stability for precision machining applications.
| Max. swing diameter over bed | Φ500mm |
| Max. turning length | 450mm |
| Guideway type | Linear guideway |
| Chuck size | 8" |
| Spindle speed range | 45~ 4500rpm |
| Spindle motor power | 11/15kw |
| Max. travel of X/Z axis | 165/500mm |
| Max. travel of tailstock | 460mm |

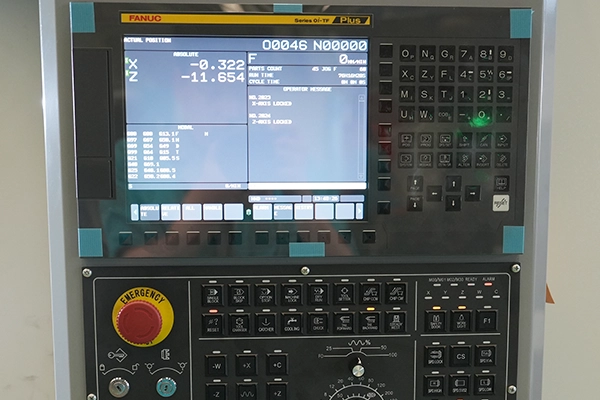

| CNC controller | FANUC,SIEMENS,GSK |
CT40H
The main spindle is driven by a high-power, high-torque, and high-speed motor, capable of performing various turning operations on shaft-type workpieces within φ260 mm and disc-type components within φ300 mm.
