DL25MH 3 Axis CNC Lathe

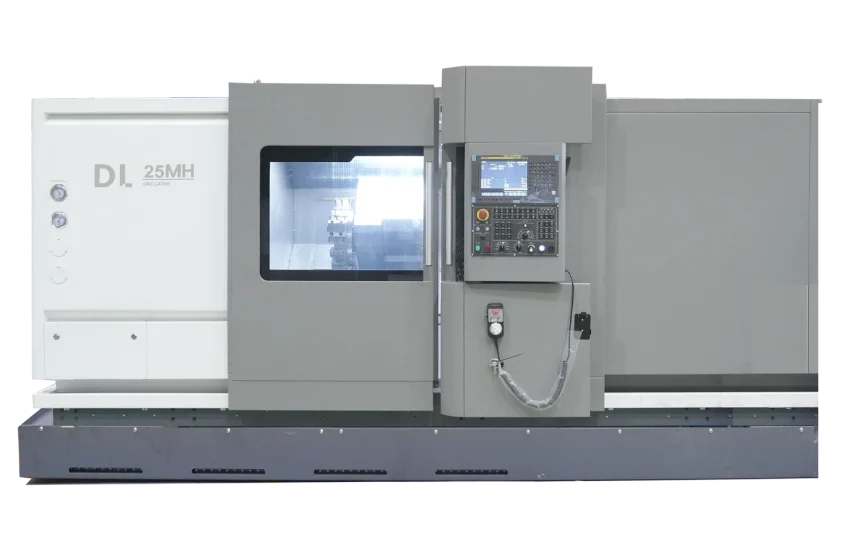

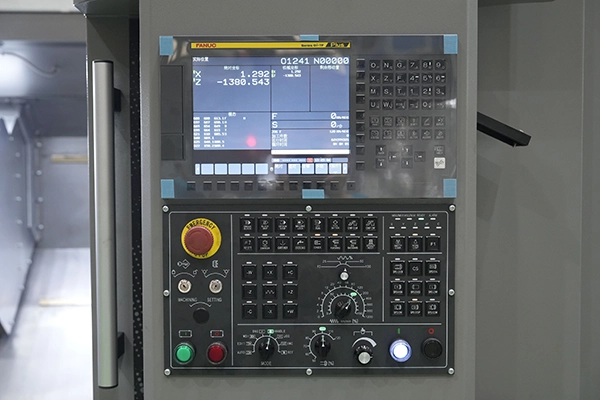

The DL-25MH is a turning center manufactured by our company, featuring two-coordinate control, three-axis simultaneous movement, and semi-closed loop control. Its monoblock cast bed with a 45° inclined guideway layout ensures high rigidity. The machine is equipped with the Japanese FANUC 0i-TF Plus CNC system for precise and stable operation.
| Max. swing diameter over bed | Φ520mm |
| Max. turning length | 1000/1500mm |
| Guideway type | Box way |
| Chuck size | 10" |
| Spindle speed range | 3500rpm |
| Spindle motor power | 18.5/22kw |
| Spindle bore | Φ87mm |
| Max. travel of X/Z axis | 260、1040/1600mm |
| CNC controller | FANUC,SIEMENS,GSK |
DL25MH
The main spindle is driven by an AC wide-range servo spindle motor with a power rating of 18.5/22 kW, capable of performing various turning, drilling, and milling operations on shaft-type workpieces within φ310 mm and disc-type components within φ500 mm.
