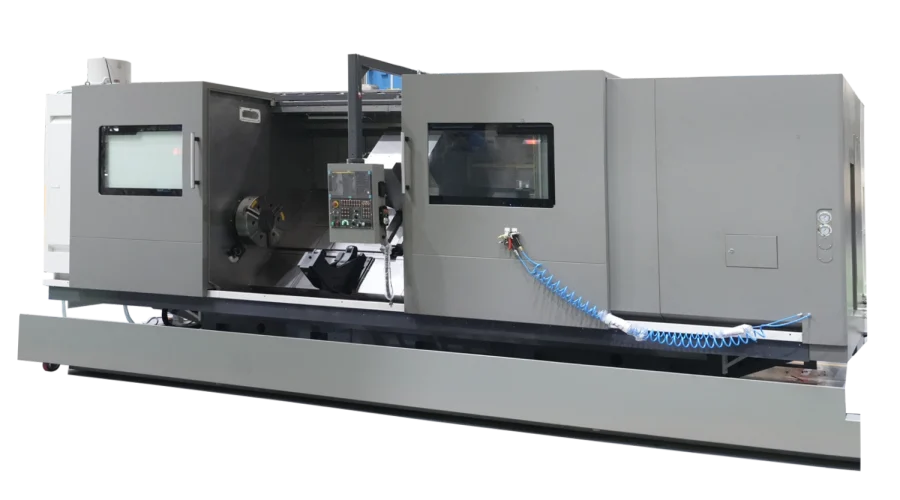

DL40M Slant Bed CNC Lathe
The DL-40M CNC lathe is a fully functional, dual-coordinate, two-axis linkage, semi-closed-loop controlled CNC lathe produced by our company. The main machine bed is made of integral casting, with a 45° inclined layout of the bed guide rails, featuring high rigidity.
| Max. swing diameter over bed | Φ900mm |
| Max .turning length | 1000/1500/2000/3000mm |
| Guideway type | Box way |
| Chuck size | 15inch |
| Spindle speed range | 1500 |
| Spindle bore | Φ130mm |
| Spindle motor power | 22/30kw |
| Max Cross travel of X axis | 435mm |
| Max Cross travel of Z axis | 1020/1520/2020/3020mm |
DL40M
The spindle motor adopts a high-power αiIP 50 wide-range motor with a power of 22/30 kW, capable of performing various turning operations on shaft-type parts with diameters up to φ660 mm and disc-type parts with diameters up to φ800 mm.
