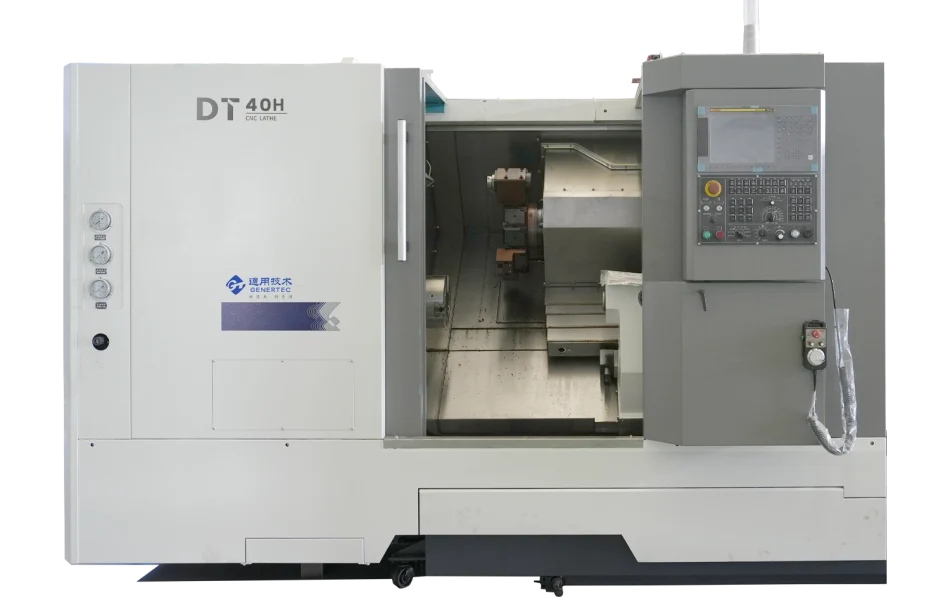

DT40H CNC Turning Mchine

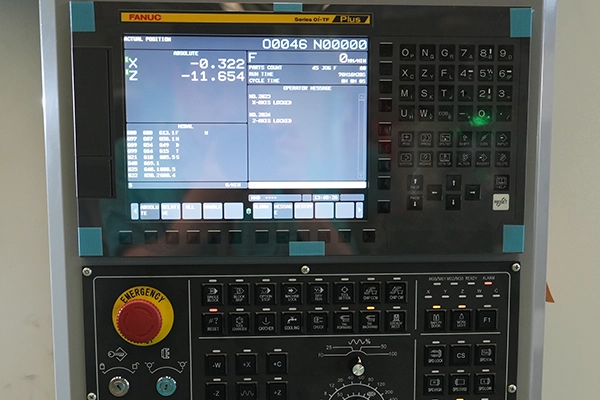

The DT-40H is a turning center manufactured by our company, featuring two-coordinate control, three-axis simultaneous movement, and semi-closed loop control. The machine bed is constructed as a monoblock casting with a 40° inclined guideway layout, ensuring high rigidity. It is equipped with the Japanese FANUC 0i-TF Plus CNC system for precise and efficient operation.

Max. swing diameter over bed	Φ580mm
Max. turning length	555/1055mm
Guideway type	Linear guideway
Chuck size	8"/10"
Spindle speed range	4000/3500rpm
Spindle motor power	11/15kw
Spindle bore	Φ70/Φ87mm
Max. travel of X/Z axis	215、445/945mm
CNC controller	FANUC,SIEMENS,GSK

CT40 Slant bed cnc lathe part 17

CT40 Slant bed cnc lathe part 1

CT40 Slant bed cnc lathe part 16

CT40 Slant bed cnc lathe part 15

CT40 Slant bed cnc lathe part 14

CT40 Slant bed cnc lathe part 13

CT40 Slant bed cnc lathe part 12

CT40 Slant bed cnc lathe part 11

CT40 Slant bed cnc lathe part 10

CT40 Slant bed cnc lathe part 9

CT40 Slant bed cnc lathe part 8

CT40 Slant bed cnc lathe part 7

CT40 Slant bed cnc lathe part 6

CT40 Slant bed cnc lathe part 5

CT40 Slant bed cnc lathe part 4

CT40 Slant bed cnc lathe part 3

CT40 Slant bed cnc lathe part 2

DT40H

The main spindle utilizes a servo spindle motor with a power rating of 11/15 kW. It is capable of performing various turning, drilling, and milling operations on workpieces within φ350 mm.
