DT50HSY Double Spindle CNC Lathe
The DT-50HSY is a fully functional turning center manufactured by our company, featuring four-axis simultaneous movement and semi-closed loop control. Its monoblock cast bed with transverse guideways at a 70° inclination ensures high rigidity. The carriage and tailstock slide utilize linear guides, delivering low friction coefficients and optimized dynamic performance.
| Max. swing diameter over bed | Φ680mm |
| Max. turning length | 450/950mm |
| Guideway type | Roller Guideway |
| Chuck size | 6" |
| Spindle speed range | 35～6000rpm |
| Spindle motor power | 7.5/11kw |
| Max. travel of X/Z axis | 251、450/950mm |
| Spindle bore | Φ87mm |
| CNC controller | Mitsubishi,FANUC,SIEMENS |
DT50HSY

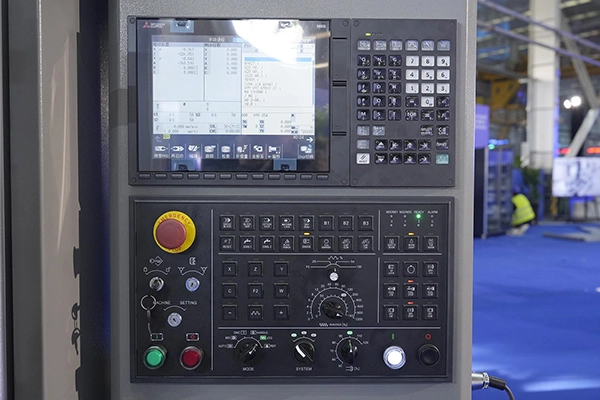

The machine employs the Mitsubishi M80A4 CNC system (or other high-quality domestic and international systems) with AC servo drives, ensuring user-friendly operation and reliable performance. Both the main and sub-spindle utilize high-power, high-torque, and high-speed servo spindle motors. It is capable of performing various turning operations on shaft-type and disc-type workpieces within φ440 mm.
