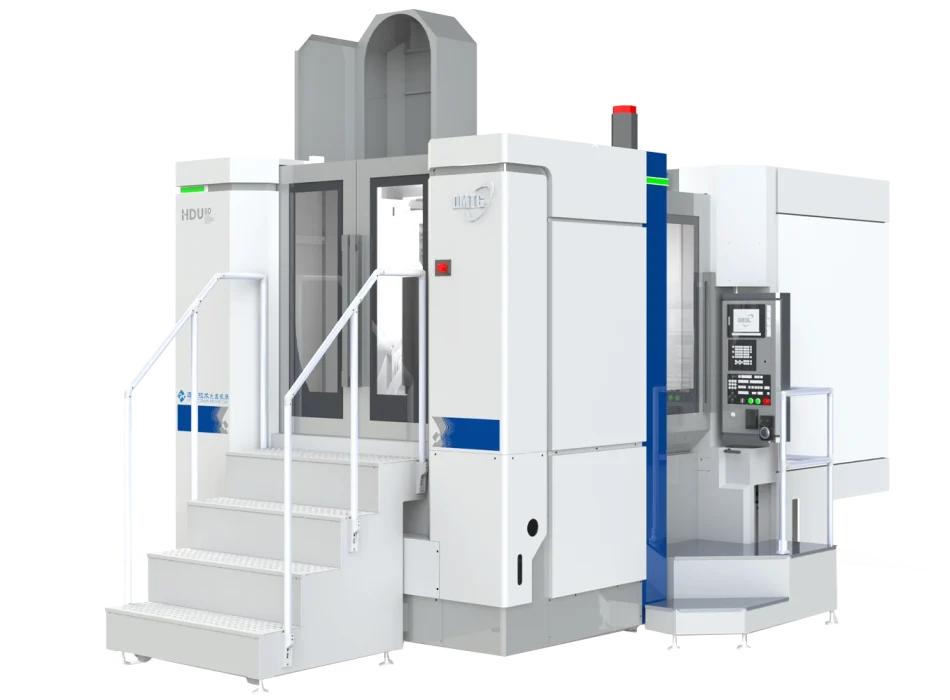

HDU60 5 Axis Horizontal Machining Center
The HDU60 horizontal 5-axis machining center is widely suitable for machining complex spatial surfaces and performing spatial angular positioning operations. It is particularly ideal for processing components such as impellers and blades, offering high automation, exceptional reliability, and user-friendly operation.
| Worktable size (L*W) | 600×600mm |
| Max. table load | 650kg |
| Workpiece Range | Φ750×700mm |
| X/Y/Z axis travel | 1050/900/900mm |
| Max spindle speed | 8000rpm Opt:12000/6000 |
| Spindle motor power | 31.5kw |
| Spindle taper | No.50 (7:24) |
| Tool magazine capacity | 40 |

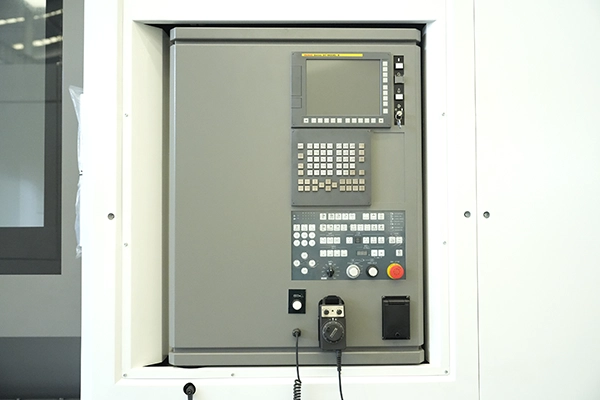

| CNC controller | FANUC 31i |
HDU60
