MDH50 Horizontal Machining Center

The MDH50 horizontal machining center is widely suitable for machining box-type parts, housing components, disc-type workpieces, and special-shaped components in industries such as machinery manufacturing. With a single setup, it can automatically complete multi-process machining on four surfaces, including milling, boring, drilling, reaming, and tapping.

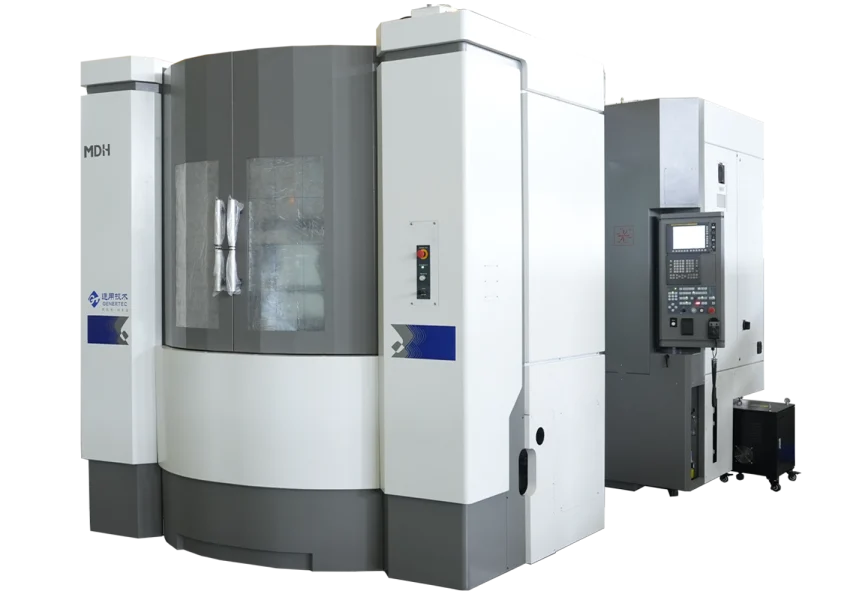

dmtg horizontal machining center mdh50
Worktable size (L*W) 500X500mm
No. of Pallet 2
Table type IT Opt:BRT
Max. table load 800kg
X/Y/Z axis travel 780/750/800mm
Max spindle speed 8000rpm Opt:12000/6000
Spindle motor power 18.5/22kw
Tool magazine capacity 40

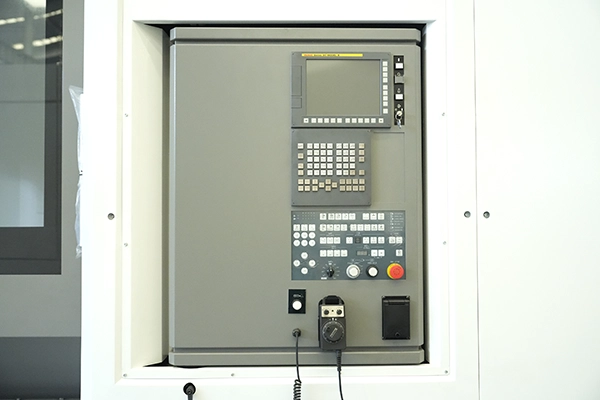

CNC controller FANUC 31i

MDH50

The X, Y, and Z-axis ball screws of the machine tool all incorporate advanced hollow cooling technology, which effectively controls thermal deformation during machining operations and enhances the machine’s overall machining accuracy.
