VDU650 5 Axis Machining Center

The VDU650 is a self-developed 5-axis vertical machining center created by Genertec Group Dalian Machine Tool Co., Ltd., based on modular, standardized, and serialized design principles. The machine adopts an improved gantry-style three-coordinate structure combined with a dual-axis composite rotary table, enabling 5-axis simultaneous machining.

Contact Us

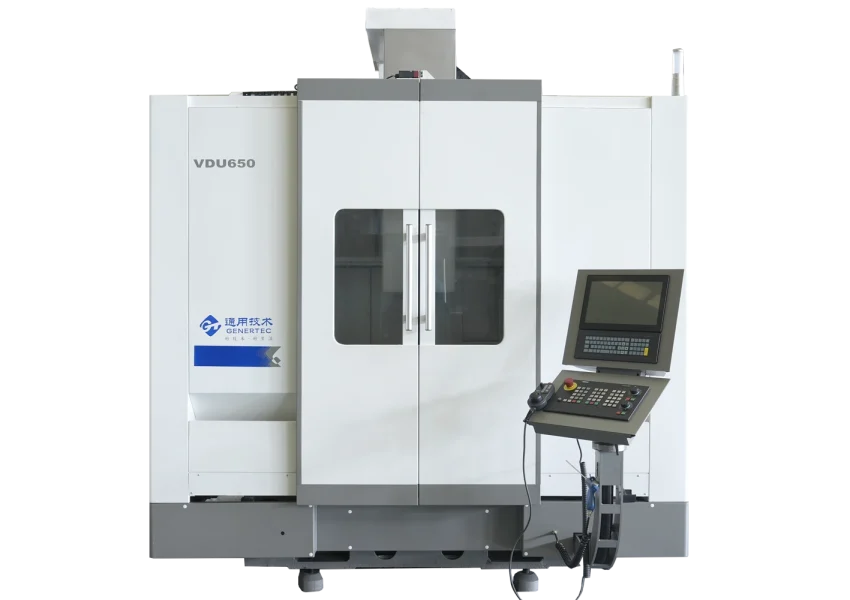

dmtg 5 axis machining center vdu650
Work table size Φ650mm
Max.load 600kg
Clamping area Φ800X500mm
X/Y/Z axis travel 650/650/500mm
Tool magazine capacity 20T Spindle direct take type
Max. spindle speed 12000rpm(Opt:15000)
Spindle motor power 8kw
Spindle type Direct drive spindle
CNC controller SIEMENS
VDM866H machining center part 1
VDM866H machining center part 2
VDM866H machining center part 4
VDM866H machining center part 5
VDM866H machining center part 6
VDM866H machining center part 7
VDM866H machining center parts 4
VDM866H machining center parts 5
VDM866H machining center parts 6

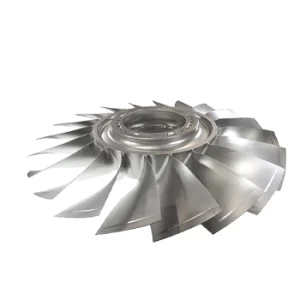

VDU650 5 axis machining center part1

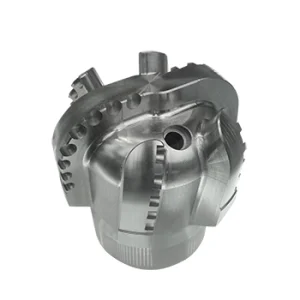

VDU650 5 axis machining center part2
VDU650 5 axis machining center part3

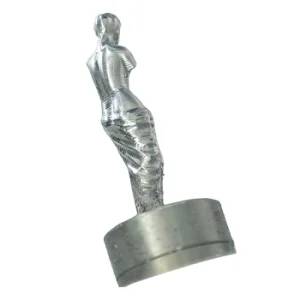

VDU650 5 axis machining center part4

VDU650

The X, Y, and Z linear axes achieve a maximum rapid traverse rate of 60 m/min. The rotary table offers two drive options: mechanical transmission or torque motor direct drive. The spindle can be configured as a belt-driven spindle or motorized spindle, with optional tool magazine capacities of 20, 30, 40, 50, or 60 tools.
